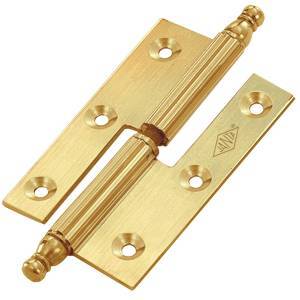

| Code No. | Size | Thickness | Length of Hinge | Width of Single Leaf | Intermediate Width | Total Width | Suggested Screw | ||||||
| LXW | T | L | W | IW | TW | ||||||||
| Inch | mm approx | Inch | mm approx | Inch | mm approx | Inch | mm approx | Inch | mm approx | Inch | mm approx | ||
| HRX 02031 | 2X5/8 | 50X15 | 1/16 | 1.5 | 2 | 50 | 5/8 | 15 | 5/16 | 8 | 1-1/2 | 37 | 15x5 |
| HRX 25031 | 2-1/2X5/8 | 62X15 | 1/16 | 1.5 | 2-1/2 | 62 | 5/8 | 15 | 5/16 | 8 | 1-1/2 | 37 | 15x5 |
| HRX 03031 | 3X5/8 | 75X15 | 1/16 | 1.5 | 3 | 75 | 5/8 | 15 | 5/16 | 8 | 1-1/2 | 37 | 15x5 |
| HRX 03052 | 3X7/8 | 75X22 | 3/32 | 2 | 3 | 75 | 7/8 | 22 | 3/8 | 9 | 2-1/8 | 53 | 15x6 |
| HRX 04052 | 4X7/8 | 100X22 | 3/32 | 2 | 4 | 100 | 7/8 | 22 | 3/8 | 9 | 2-1/8 | 53 | 15x6 |
